The Global Industrial Ecosystem of Octagonal Galvanized Iron (GI) Poles
A comprehensive technical report on why octagonal tapered geometry dominates modern civil infrastructure, municipal electrification, and highway lighting engineering worldwide.
Aerodynamic Drag & Geometry Efficiency
Octagonal Galvanized Iron (GI) poles represent an optimal compromise between round tapered poles and multi-faceted high mast structures. The 8-sided cross-section increases the section modulus (Z) while providing a higher moment of inertia relative to steel volume. Under gusty turbulent wind loads (up to 160 km/h - 260 km/h), octagonal poles break vortex shedding cycles more effectively than cylindrical shafts, suppressing aerodynamic fatigue and oscillation across extended lifespans.
Material Optimization & High-Tensile Steel
Fabricated predominantly from low-silicon structural steel grades such as Q235B, Q355B (S355JR), and ASTM A572 Grade 50, octagonal GI poles are cold-formed on massive CNC hydraulic press brakes (up to 2,000 tons capacity). This cold-bending process introduces strain hardening along the eight longitudinal corners, increasing yield strength in critical flexural zones without adding deadweight to municipal foundation anchors.
Structural Comparison Matrix: Shaft Profiles in Infrastructure Design
| Profile Geometry | Section Modulus Efficiency | Wind Drag Coefficient (Cd) | Manufacturing Precision | Ideal Application Height |
|---|---|---|---|---|
| Octagonal Tapered (8-Side) | High (Optimized weight-to-strength ratio) | 0.75 – 0.85 (Suppresses vortex shedding) | Ultra-High (Automated CNC single-seam fold) | 3 meters to 15 meters |
| Round Conical Tapered | Moderate-High | 0.55 – 0.65 | Requires continuous multi-pass rolling | 4 meters to 12 meters |
| Polygonal High-Mast (12/16-Side) | Maximum (Extreme torsional stability) | 0.80 – 0.90 | Multi-segmented slip-joint forming | 18 meters to 40+ meters |
| Square Tubular | Low (High stress concentration at corners) | 1.20 – 1.30 (High wind resistance) | Standard extrusion or seam welding | 3 meters to 6 meters (Architectural) |
Engineering Insight: Section Modulus & Weight Reduction
By transitioning from traditional round pipes to hot-dip galvanized octagonal poles, civil engineering projects typically achieve a 12% to 18% steel weight reduction without compromising structural load ratings under AASHTO LTS-6 and EN 40 standards. This directly decreases freight costs per container and reduces carbon footprints during transport.
Why Chinese Octagonal GI Pole Manufacturers Lead Global Export Markets
Analyzing the scale, speed, metallurgical control, and integrated supply chains of tier-1 Chinese production hubs in Jiangsu and Zhejiang provinces.
End-to-End Vertical Integration
Leading Chinese exporters like Yangzhou Xintong Traffic Equipment Group manage the entire production chain under one roof: from raw steel coil slitting, CNC hydraulic press brake bending, single-seam submerged arc welding (SAW), to internal and external hot-dip galvanizing and electrostatic polyester powder coating.
Throughput & Rapid Lead Times
Automated production lines in 100,000 m² facilities can produce up to 1,500 octagonal GI poles daily. Standard tender orders for 5,000 municipal light poles can be manufactured, galvanized, quality-inspected, and packed into export containers within 14 to 21 working days.
Quality Control & Traceability
Full compliance with ISO 9001, ISO 14001, and ISO 45001. Raw material heats are verified with Mill Test Certificates (MTC) per EN 10204 3.1. Ultrasonic non-destructive testing (NDT) is conducted on 100% of longitudinal welds and base-plate structural joints.
Corrosion Prevention: Hot-Dip Galvanizing (HDG) Specs vs Atmospheric Conditions
Hot-dip galvanizing per ISO 1461 and ASTM A123 forms a metallurgical bond consisting of zinc-iron alloy layers harder than the base steel itself.
| Corrosivity Category (ISO 9223) | Environmental Setting | Avg. Zinc Loss Rate (μm/year) | Specified HDG Thickness (μm) | Expected Service Lifespan |
|---|---|---|---|---|
| C1 & C2 (Low) | Dry Inland, Rural, Heated Buildings | < 0.7 μm / yr | 65 – 80 μm | 50+ Years (Maintenance Free) |
| C3 (Medium) | Urban Municipal Roads, Light Industrial | 0.7 – 2.1 μm / yr | 86 μm | 40+ Years |
| C4 (High) | Industrial Areas, Coastal Highways | 2.1 – 4.2 μm / yr | 100 – 120 μm | 25 – 35 Years |
| C5-M (Very High Marine) | Offshore, Seaports, High-Humidity Tropical | 4.2 – 8.4 μm / yr | 120 μm + Polyurea / Thermoset Powder | 20 – 30 Years in Harsh Environment |
Localized Scenarios & Global Engineering Buyer Demand Profiles
How octagonal GI poles are specified across different global geographic regions, climatic stress zones, and smart city infrastructure tenders.
1. High-Wind Coastal Highways & Expressways
In hurricane-prone regions (Middle East coastlines, Southeast Asian island corridors, Caribbean coastal roads), octagonal GI poles are engineered with custom wall thicknesses (3mm to 8mm) and heavy-duty flange base plates. Dynamic Finite Element Analysis (FEA) ensures base plate stiffness and bolt hole spacing resist high bending moments.
2. Smart City IoT & Multi-Functional Integration

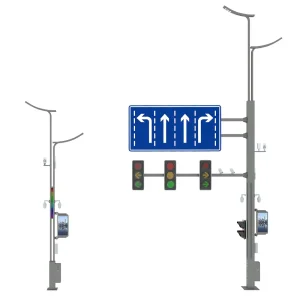

Modern municipal buyers demand octagonal GI poles equipped with internal cable management channels, flush maintenance doors with lock mechanisms, and external mounting brackets. The flat surfaces of the octagonal shaft provide stable mounting planes for 5G micro base stations, CCTV cameras, environmental sensors, and digital LED signage.
3. Off-Grid Solar & Hybrid Street Lighting

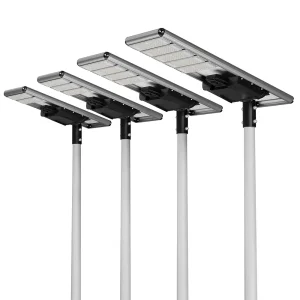

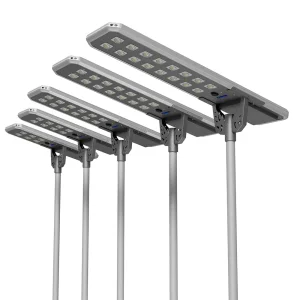

For rural electrification and highway modernization across Africa, Latin America, and Central Asia, octagonal split-type and all-in-one solar poles eliminate the need for costly underground trenching. Octagonal poles comfortably handle the top-heavy EPA (Effective Projected Area) wind load created by large photovoltaic panels and battery boxes.
Emerging Technology Trends in GI Pole Fabrication & Coating
How innovations in green steel manufacturing, advanced coatings, and modular telescoping designs are shaping the future of pole exports.
Zinc-Aluminum-Magnesium (ZAM) Coating Adoption
While traditional hot-dip galvanizing remains the industry standard, next-generation infrastructure projects are beginning to utilize pre-coated Zinc-Aluminum-Magnesium steel alloys. ZAM coatings provide self-healing protection on sheared edges and cutouts, offering up to 5x higher atmospheric corrosion resistance in severe salt-spray environments.
Green Carbon-Neutral Steel Sourcing
Global EPC contractors and European infrastructure authorities increasingly enforce strict Scope 3 emission targets. Export factories are pivoting toward electric arc furnace (EAF) recycled steel coils, lowering embodied carbon per pole by over 40% compared to blast-furnace routes, while maintaining identical tensile yields.
Frequently Asked Questions (FAQ) for Enterprise Procurement
Addressing key engineering, manufacturing, quality assurance, and international logistics inquiries from global buyers.
An octagonal GI pole provides a higher section modulus and moment of inertia for the same wall thickness, reducing total weight while maintaining structural rigidity. The 8-flat-face design breaks up wind vortices, suppressing wind-induced dynamic vibrations and fatigue failure. Additionally, the flat faces simplify the mounting of brackets, smart sensors, and distribution boxes.
Our octagonal GI poles are manufactured in strict compliance with ISO 1461 and ASTM A123 for hot-dip galvanizing, EN 40 and AASHTO LTS-6 for structural wind load design, and EN 10025 (S235JR / S355JR) or GB/T 700 / GB/T 1591 for steel plate quality. Mill Test Certificates (EN 10204 3.1) and galvanizing coating thickness reports are issued for every batch.
Longitudinal welds are executed via continuous Submerged Arc Welding (SAW) or automatic MIG welding. Every weld undergoes visual inspection per AWS D1.1 standards, and random batch samples undergo Ultrasonic Testing (UT) and Magnetic Particle Inspection (MT) to ensure 100% penetration and zero internal porosity before galvanizing.
Yes. As an OEM/ODM direct factory supplier, all base plate dimensions, bolt circle diameters (PCD), anchor bolt specifications (Grade 4.8, 8.8, or HDG J-bolts), and bracket outreach configurations (single arm, double arm, decorative, high-mast headframes) are fully customized to match your civil foundations and lighting layout.
Poles are bundled using heavy-duty woven protective wrapping, neoprene rubber spacers, and steel strapping to prevent surface abrasion during long ocean voyages. Small components, anchor bolts, and arm attachments are packed in wooden crates. Shaft lengths up to 11.8 meters fit into standard 40ft High Cube (40HC) containers, while longer poles utilize slip-joint multi-section designs.
